OEM Hydrostatic Type Level Transmitter For Rainwater Drinking Water

Ask Lasest Price
Brand Name :	WNK
Model Number :	wnk8010
Supply Ability :	3000 Set/Sets per Week water level sensor
Price :	$35.00 - $50.00/Pieces
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Delivery Time :	5-8 work days
Certification :	CE

Add to Cart

Product Details
Company Profile

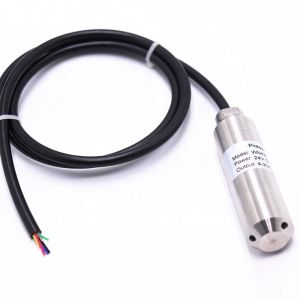

OEM Hydrostatic Type Level Transmitter For Rainwater Drinking Water

4-20mA Hydrostatic Water Level Sensor For Rainwater Drinking Water Measuring

Product Name	4-20mA Hydrostatic Water Level Sensor For Rainwater Drinking Water Measuring
Pressure measurment	Liquid,Water
Accuracy	±0.25% FS/year, ±0.5% FS/year
Output	4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, IIC,HART,RS485
Power supply	24V/12V/5V/3.3V
Ambient/Process/Compensation temperature	-20~80℃
Housing material	Stainless steel
Ingress Protection	IP68

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Product Show

OEM Hydrostatic Type Level Transmitter For Rainwater Drinking Water

Specifications

OEM Hydrostatic Type Level Transmitter For Rainwater Drinking Water

Low Cost Water Level Sensor For Deep Well/ Open Tank/Pool

Ordering Code

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
