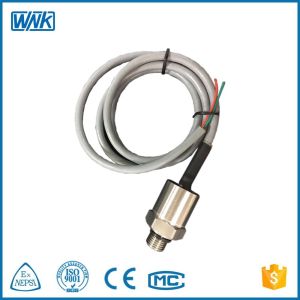

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK811
    Supply Ability : 30000 Piece/Pieces per Month 3.3V pressure transducer
    Price : $8.90 - $29.90/Pieces
    • Product Details
    • Company Profile

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output


    Low Cost Digital SPI IIC I2C Output 3.3V Pressure Sensor For IOT


    WNK811 is a series of high performance compact pressure transducer, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 10 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output

    Specifications


    Pressure TypeGauge Pressure , Absolute Pressure, Sealing Pressure
    Pressure Range-100Kpa - 60Mpa
    Accuracy0.2%, 0.5%, 1.0% FS
    Power Supply5VDC, 12-32VDC
    Measuring MediaGas, Steam, Liquid, Oil
    Output
    Analog4-20mA, 0.5-4.5V, Other
    DigitalI2C, SPI
    Operation Condition and Temperature
    Compensation Temperature-40...75℃
    Medium Temperature-45 ... 85℃
    Storage Temperature-45 ... 85℃
    Material and Protection
    Ingress ProtectionIP65, IP67
    Housing Material304SS, 316L

    Applications
    - Automobile, Compressor and Refrigeration Industry
    - Engineering machinery
    - Pressure control and monitor
    - Water treatment system
    - Hydraulic and Pneumatics
    - HAVC and BAS Control
    - Pump, fitness equipment, household appliances
    - Factory Automation
    - Fluid Control and Instrumentation Systems

    Electrical Connections

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output

    Pressure Port

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output

    Hot Product

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output


    Company Information

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output


    Exhibition

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output



    Certification

    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output


    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output


    IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea
