    High Performance Engine Oil Pressure Temperature Sensor IP65

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK84TP
    Price : $25.00-30/Pieces
    • Product Details
    • Company Profile

    High Performance Engine Oil Pressure Temperature Sensor IP65

    High Performance Engine Oil Pressure Temperature Sensor

    WNK Engine Oil Pressure Temperature Sensor

    Product Description

    Working pressure: 0~3.6MPa (range can be adjusted)

    Accuracy: ±1.0%F.S. (Linearity, Hysteresis, Repeatability)

    Full error band: ±2.3%F.S. (-40~+135)

    Also available in high precision version

    Operating temperature: -40~+135

    Storage temperature: -40~+150

    Protection pressure: 5.4Mpa

    Burst pressure: 10Mpa

    Working medium: engine oil, POE oil, refrigerant

    Service life: 3 million full-scale cycles

    Vibration: 13g (100~400Hz)

    Protection class: IP65

    Supply voltage: 5.0±0.25VDC

    Output voltage: 0.5-4.5VDC (adjustable within 5V range)

    Supply current: 10mA (maximum)

    Load Impedance: 10KQ (typ.)

    Output response time: 3mS

    Overvoltage Protection: 40VDC

    Reverse Voltage: -40VDC

    Short circuit protection: yes

    EMC (1MHz-400MHz): 100V/m

    ESD: 15KV

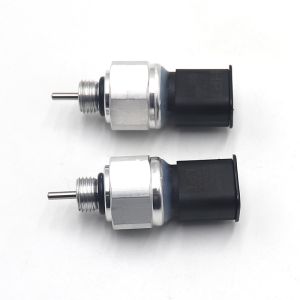

    Product Show


    Company Information


    Certification

    Packaging & Shipping


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea.
